Primary Packaging

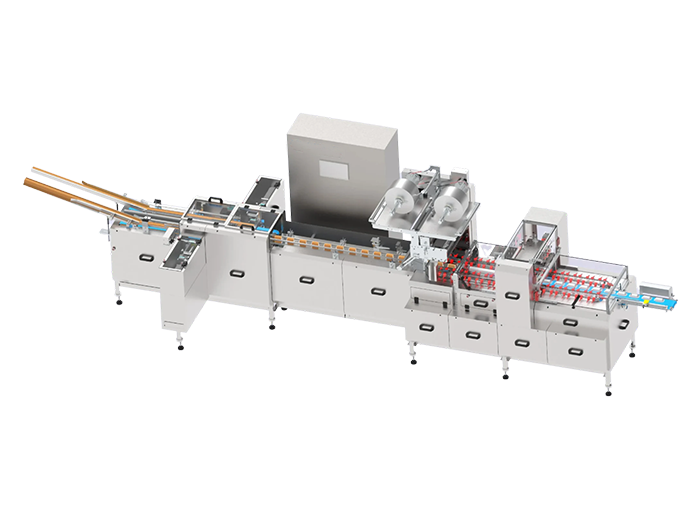

Slug Pack UGP7120ES
Our ‘flow wrap’ solution integrated with ‘two lane’ auto feeding system can pack biscuits standing on edge in slug format at speeds up to 140ppm and for 120mm slug at a speed of up to 180ppm for small size.
| Standard | |
|---|---|
| Max.Mech.Speed | 120 packs per min |
| Stack width | 40mm – 75mm |
| Stack height | 30mm – 70mm |
| Product Length | 60mm – 250mm |
| Product width + height | 125mm |
| Wrapper cutoff length | 120 – 350mm |
| Max reel width | 280mm |
| Max reel diameter | 340mm |
The data above is a general guideline. Actual production speed will depend upon product size and characteristics, proficiency of feeding, and wrapper characteristics. The production speed will also be lower than mechanical speed stated above if one or more factors are close to the range limits.
