Primary Packaging

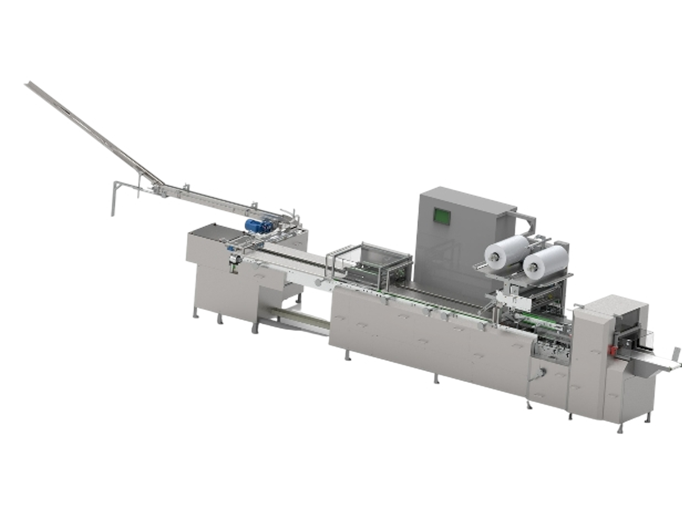

UGP7050FS ON EDGE FAMILY PACK
For packing two or more rows of biscuits on edge prepacked/with/without tray, the ‘flow wrap’ solution offers speed up to 120-150 rows per minute. This is also available with automatic single or multi-lane feeding systems.
| Machine Modal | UGP7050FS |
|---|---|
| Max output | 150 rows per min |
| Product stack width | 50mm – 165mm |
| Product stack height | 80mm – 260mm |
| Product width + height | 235mm |
| Wrapper cutoff length | 140mm – 360mm |
| Max reel width | 500mm |
The data above is a general guideline. Actual production speed will depend upon product size and characteristics, proficiency of feeding, and wrapper characteristics. The production speed will also be lower than mechanical speed stated above if one or more factors are close to the range limits

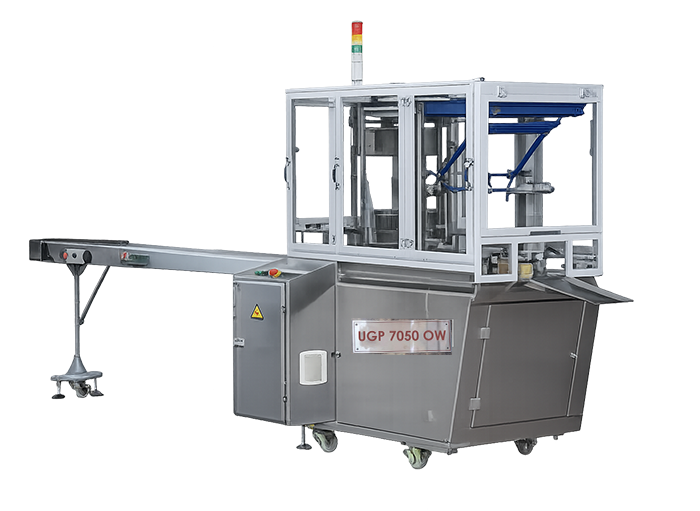

UGP7050OW BOPP Over Wrapper
Automatic BOPP over wrapper engineered for biscuit packaging, providing consistent wrapping quality and reliable high-speed production.
| Machine Modal | UGP7050OW |
|---|---|
| Max output | 140Rows/min |
| Product stack width | 50mm – 165mm |
| Product stack height | 80mm – 260mm |
| Product width + height | 235mm |
| Wrapper cutoff length | 140mm – 360mm |
| Max reel width | 500mm |
The data above is a general guideline. Actual production speed will depend upon product size and characteristics, proficiency of feeding, and wrapper characteristics. The production speed will also be lower than mechanical speed stated above if one or more factors are close to the range limits
