Secondary Packaging

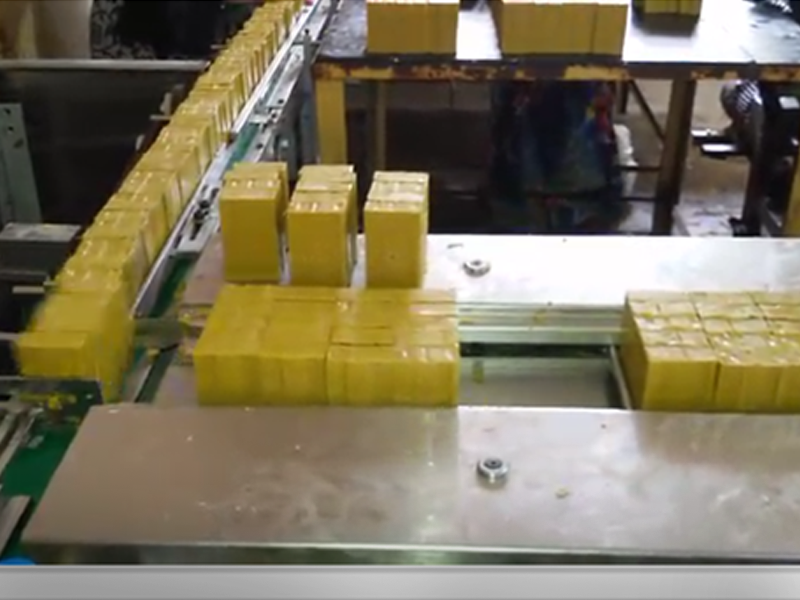

Horizontal Flow Wrapper For cross pack, single row, multiple product
A horizontal secondary cross-pack flow wrap machine is a specialized, high-speed packaging solution that takes individual products—previously wrapped or in their primary packaging—and wraps them into a secondary, "cross-packed" configuration (often stacked, on-edge, or in specific arrangements) to form a larger multi-pack. These machines are widely used in the food industry for items like cookies, cream crackers, biscuits, and chocolate bars that require delicate, precise handling.
| MACHINE MODEL | UGP7050CP |
|---|---|
| Machine Designed Speed | Up to 60 PPM |
| Connected Load | 5.5 kw, 415V, 3 Ø + N, 50 Hz |
| Compressed air | 6 LPM |
| Machine Foot Print Size (L x W x H) in mm | 4308 x 3699 x 2093 |
| Machine Net Weight | 1350kg |
| Machine Construction | CI Casting, MS Painted contact parts SS304 or SS316 as Optional Feature |
| Wrapper Pulling | Servo Controlled PLC |
| Core Inner DIA of Reel | 75 ± 1 MM |
| Wrapper Maximum Outer DIA of Reel | 400 ±10 MM |
| Standard Product Handing Maximum Size (mm) | 120 x 65 x 42 |
| Standard Product Handing Minimum Size (mm) | 65 x 35 x 10 |
| Packaging Material | LAMINATE USED BOPP/LAMINATE WITH INSIDE HEAT SEALABLE |
| Actual Production Efficiency | 85% |
Inverted flow wrap for versatile application

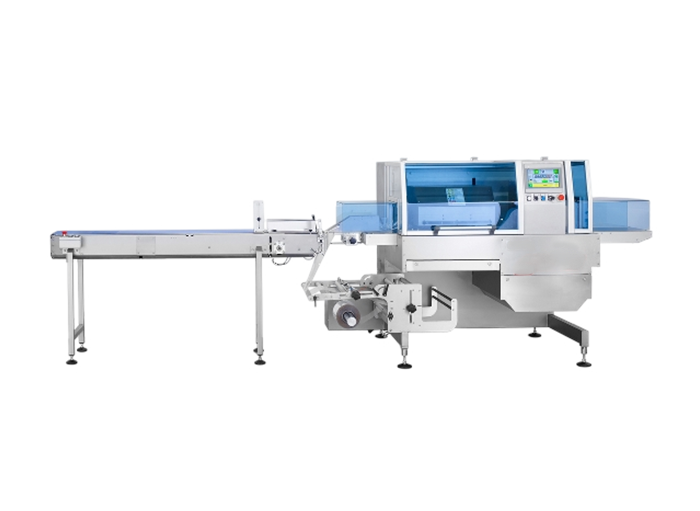

United Global Packaging presents the Inverted Flow Wrap Machine, a flexible and high-performance packaging solution designed for a wide range of applications across food and non-food products. The inverted flow wrap design allows products to be placed directly on the film from the top, making it especially suitable for fragile, sticky, irregular, or difficult-to-handle items. This configuration ensures gentle product handling, accurate positioning, and consistent sealing quality, even at high production speeds. Engineered for versatility, the machine can handle multiple product formats and sizes with ease. Its robust construction, precision-driven components, and advanced control system deliver reliable operation, minimal maintenance, and maximum efficiency.
Key Highlights
- Inverted flow wrap design for versatile applications
- Ideal for fragile, sticky, or irregular-shaped products
- Gentle product handling with precise film control
- Consistent sealing quality and high-speed performance
- Easy size changeover and flexible operation
The Inverted Flow Wrap Machine from United Global Packaging is a reliable and adaptable solution for manufacturers seeking flexibility, efficiency, and superior packaging quality across diverse applications.
