Primary Packaging

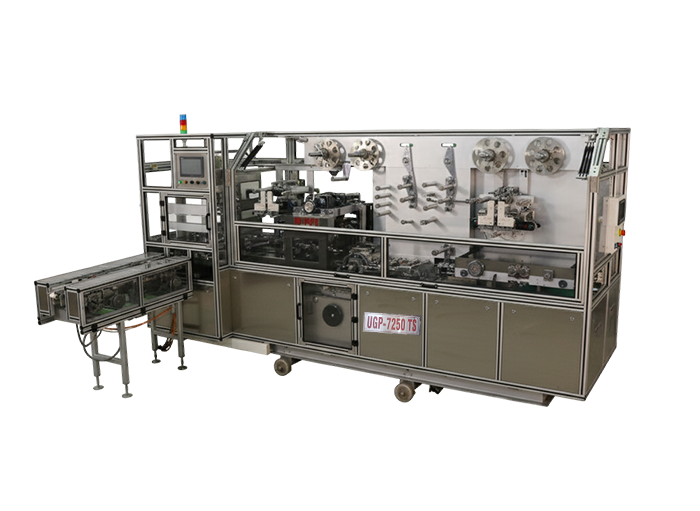

Toilet Soap Paper Overwrapping Machine
| MACHINE MODEL | UGP7250TS |
|---|---|
| Machine Designed Speed | Up to 300 PPM |
| Grade | Fully Automatic |
| Connected Load | 7.5 kw, 415V, 3 Ø + N, 50 Hz |
| Compressed air | 6 LPM |
| Machine Foot Print Size (L x W x H) in mm | 4308 x 3699 x 2093 |
| Machine Net Weight | 1850kg |
| Machine Construction | CI Casting, MS Painted contact parts SS304 or SS316 as Optional Feature |
| Core Inner DIA of Reel | 75 ± 1 MM |
| Wrapper Maximum Outer DIA of Reel | 400 ±10 MM |
| Cross Seal | Mechanically |
| Standard Product Handing Maximum Size (mm) | 120 x 65 x 42 |
| Standard Product Handing Minimum Size (mm) | 65 x 35 x 10 |
| Packaging Material | Poly + Paper + Hotmelt |
| Actual Production Efficiency | 85% |
Standard Feature
- High speed 6 axis PLC interfaced fully automatic machine, designed speed upto 250+ Packs/min
- Four Axis Servo Control fully automatic for wrapper pull & wrapper cut & stiffener pull and stiffener cut
- No-product No Wrapper Interlock, accurate automatic print registration at high speeds
- Continuous Motion 5 Station vacuum, Suction Pick & place unit designed to work at high higher Speed operations to handle soft soap bars.
- Category 4 guarding with electronic Interlock for safety of operator & machine
- Management information system to Monitor the production output shift wise, day wise, month wise down time of Machine, Machine efficiency, for MIS analysis.
Super Feature
- High Speed Matching to Soap Stamping Machine
- Automatic Splicing unit
- High Packaging quality
- Ergonomics & Category 4 Safety Interlock
- Easy and Quick Change over
Optional Features
- Infeed Conveyor can be LHS/RHS depending upon layout
- Mirror image orientation to allow single operator to run two machines.
- Auto Splicer unit for wrapper & Stiffener
- Remote cloud router , Emergency Spares kit , Change Parts kit , Tool kit.
- UPS is Optional.
Standard Feature
- Machine Designed for toilet soap Bar
- Single axis servo system for wrapper and stiffener control and print registration
- Speed up to 180 to 200 TPM depending upon the product dimensions and laminate quality and feeding of soap
- Directly linkable to stamping with linkup conveyor for automatic feeding of soap bars
- No soap no wrapper interlock
Machine Features
- Design for High speed
- Low easy maintenance
- High up time
- High productivity
- PLC/Servo system interface
Optional Features
- Packing date printer
- Customized infeed conveyor to suit plant layout
- Change part for soap variants
- Machine on caster wheel for easy Mobility

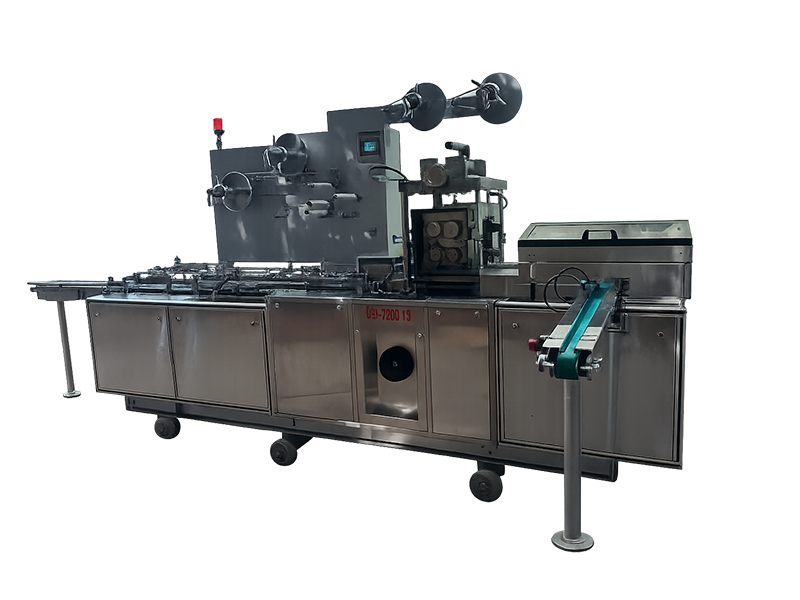

Semi-Automatic Toilet Bar Soap Wrapping Machine
| MACHINE MODEL | UGP7200TS: SPEED 160-180PPM |
|---|---|
| Machine Designed Speed | Up to 200 PPM |
| Connected Load | 5,0 kw, 415V, 3 Ø + N, 50 Hz |
| Grade | Semi Automatic |
| Compressed air | 6 LPM |
| Machine Foot Print Size (L x W x H) in mm | 4308 x 3699 x 2093 |
| Machine Net Weight | 1350kg |
| Machine Construction | CI Casting, MS Painted contact parts SS304 or SS316 as Optional Feature |
| Core Inner DIA of Reel | 75 ± 1 MM |
| Wrapper Maximum Outer DIA of Reel | 400 ±10 MM |
| Cross Seal | Mechanically |
| Standard Product Handing Maximum Size (mm) | 176 x 65 x 42 |
| Standard Product Handing Minimum Size (mm) | 65 x 35 x 10 |
| Packaging Material | Poly + Paper + Hotmelt |
| Actual Production Efficiency | 85% |

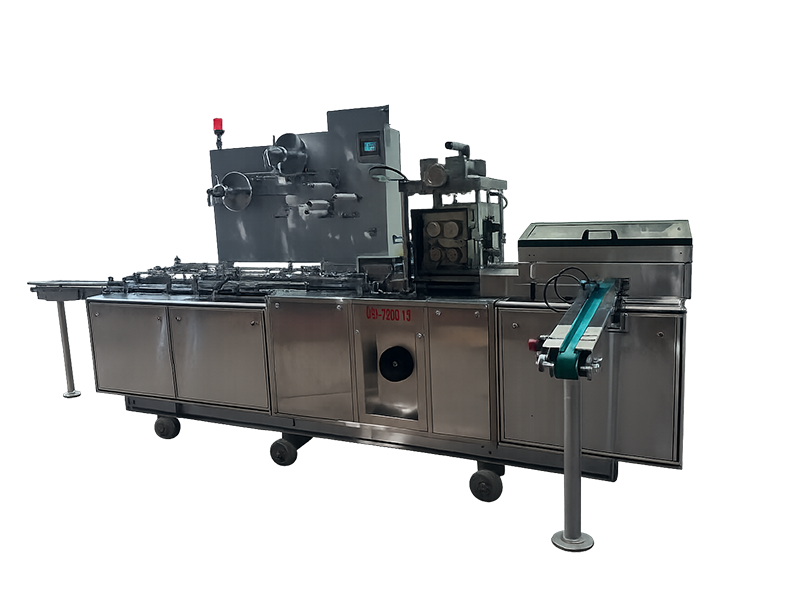

Detergent Bar Overwrapping Machine
| MACHINE MODEL | UGP7200DS: SPEED 200PPM |
|---|---|
| Machine Designed Speed | Up to 300 PPM |
| Connected Load | 5,0 kw, 415V, 3 Ø + N, 50 Hz |
| Grade | Semi Automatic |
| Compressed air | 6 LPM |
| Machine Foot Print Size (L x W x H) in mm | 4320 x 1600 x 1800 |
| Machine Net Weight | 1350kg |
| Machine Construction | CI Casting, MS Painted contact parts SS304 or SS316 as Optional Feature |
| Wrapper Pulling | Servo Controlled PLC |
| Core Inner DIA of Reel | 75 ± 1 MM |
| Wrapper Maximum Outer DIA of Reel | 400 ±10 MM |
| Cross Seal | Mechanically |
| Standard Product Handing Maximum Size (mm) | 176 x 65 x 42 |
| Standard Product Handing Minimum Size (mm) | 65 x 35 x 10 |
| Packaging Material | Poly + Paper + Hotmelt |
| Actual Production Efficiency | 85% |
Standard Feature
- Machine Designed for detergent bar soaps
- Heavy duty casted structure MACHINE WEIGHT 1500 Kgs. APPROX.
- Speed up to 200 TPM depending upon the product dimensions and laminate quality and feeding of soaps Bar
- Directly linkable to stamping with linkup conveyor for automatic feeding of soap bars
- No product no wrapper interlock
Machine Feature
- Design for High speed
- Low easy maintenance
- High up time
- High productivity
Optional Feature
- Packing date printer
- Customized infeed conveyor to suit plant layout
- Change part for soap variants
- Machine on caster wheel for easy Mobility
- Adjustable turret
