Primary Packaging
Standard Feature
- Machine designed to pack Toilet Bar Soap / Multi-Purpose Bar Soap / Laundry Bar Soap / Hotel Bar Soap, Detergent Bar Soaps & long Laundry bar soap.
- Speed up to 300 PPM depending upon the product dimensions and laminate quality and soap feeding options.
- Speed up to 100 PPM for a long bar 400mm depending upon the product dimensions and laminate quality and soap feeding options
- Double spool arrangement for laminate rolls to save change over time to increase the uptime of the machine.
- Cross sealer control through servo for better quality, safety of product and operator.
- Heavy duty, distortion free CI Casting for high speed operations.
- Long seal is formed by three pairs of mechanical circular sealer and circular sealer axis can be tilted.
- Castors for mobility of machine
OPTIONAL FEATURES
- No soap No pouch interlock
- Packing date printer.
- Customized infeed conveyor to suits plant layouts.
- Change part kit for different soap sizes.
- Auto gusting unit.
- Preset String Cutting
MACHINE SPECIFICATIONS
- Supply: 3 Phase 220V, 50Hz
- Heater: 3KW
- Machine consumption: 12 KW

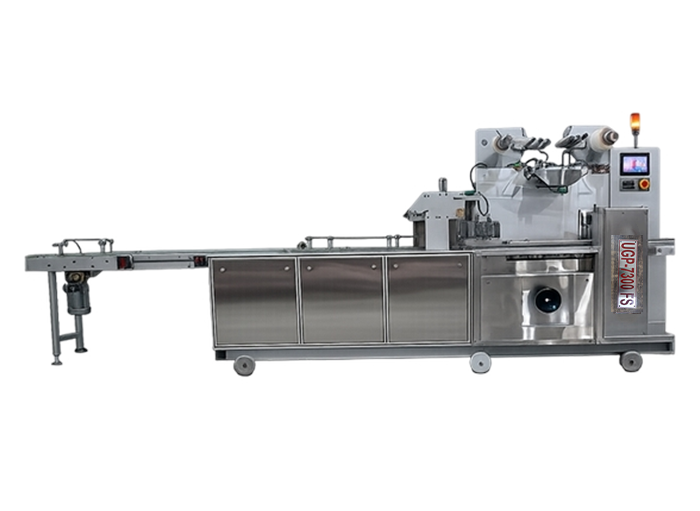

UGP7300FS for SINGLE BAR & PROMTIONAL PACK
| MACHINE MODEL | UGP7300FS |
|---|---|
| Machine Designed Speed | Up to 300 PPM |
| Connected Load | 7.5 kw, 415V, 3 Ø + N, 50 Hz |
| COMPRESSED AIR | 6 LPM |
| Machine Foot Print Size (L x W x H) in mm | 4308 x 3699 x 2093 |
| Machine Net Weight | 1850kg |
| Machine Construction | CI Casting, MS Painted contact parts SS304 or SS316 as Optional Feature |
| Wrapper Pulling | Servo Controlled PLC |
| Core Inner DIA of Reel | 75 ± 1 MM |
| Wrapper Maximum Outer DIA of Reel | 400 ±10 MM |
| Standard Product Handing Maximum Size (mm) | 120 x 65 x 42 |
| Standard Product Handing Minimum Size (mm) | 65 x 35 x 10 |
| Packaging Material | LAMINATE USED BOPP/LAMINATE WITH INSIDE HEAT SEALABLE |
| Actual Production Efficiency | 85% |

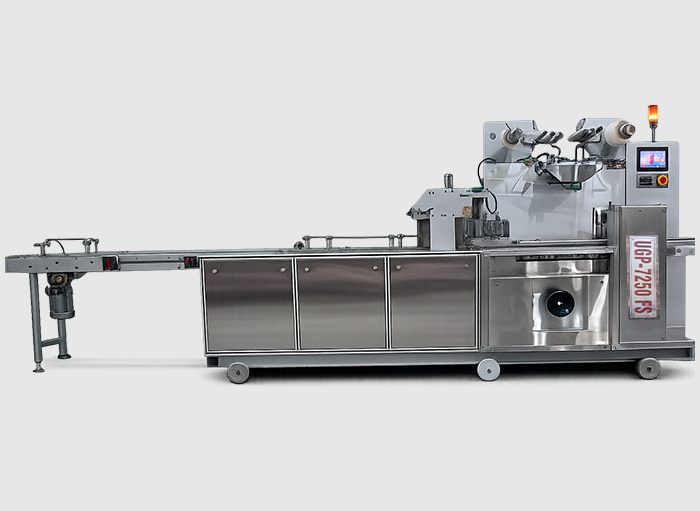

UGP7250 FS for Normal toilet soap/Laundry soap/detergent soap/multipurpose bar soap
| MACHINE MODEL | UGP7250 FS |
|---|---|
| Machine Designed Speed | Up to 250 PPM |
| Connected Load | 7.5 kw, 415V, 3 Ø + N, 50 Hz |
| 6 LPM | 6 LPM |
| Machine Foot Print Size (L x W x H) in mm | 4308 x 3699 x 2093 |
| Machine Net Weight | 1850kg |
| Machine Construction | CI Casting, MS Painted contact parts SS304 or SS316 as Optional Feature |
| Wrapper Pulling | Servo Controlled PLC |
| Core Inner DIA of Reel | 75 ± 1 MM |
| Wrapper Maximum Outer DIA of Reel | 400 ±10 MM |
| Standard Product Handing Maximum Size (mm) | 120 x 65 x 42 |
| Standard Product Handing Minimum Size (mm) | 65 x 35 x 10 |
| Packaging Material | LAMINATE USED BOPP/LAMINATE WITH INSIDE HEAT SEALABLE |
| Actual Production Efficiency | 85% |
Standard Feature
- Machine designed to pack Toilet Bar Soap / Multi-Purpose Bar Soap / Laundry Bar Soap / Hotel Bar Soap, Detergent Bar Soaps & long Laundry bar soap.
- Speed up to 250 PPM depending upon the product dimensions and laminate quality and soap feeding options.
- Double spool arrangement for laminate rolls to save change over time to increase the uptime of the machine.
- Cross sealer control through servo for better quality, safety of product and operator.
- Heavy duty, distortion free CI Casting for high speed operations.
- Long seal is formed by three pairs of mechanical circular sealer and circular sealer axis can be tilted.
- Castors for mobility of machine
OPTIONAL FEATURES
- No soap No pouch interlock.
- Packing date printer.
- Customized infeed conveyor to suits plant layouts.
- Change part kit for different soap sizes.
- Auto gusting unit.
- Preset String Cutting
MACHINE SPECIFICATIONS
- Supply: 3 Phase 220V, 50Hz
- Motor: 2 HP, 3 Phase
- Heater: 3 KW
- Machine consumption: 8 KW

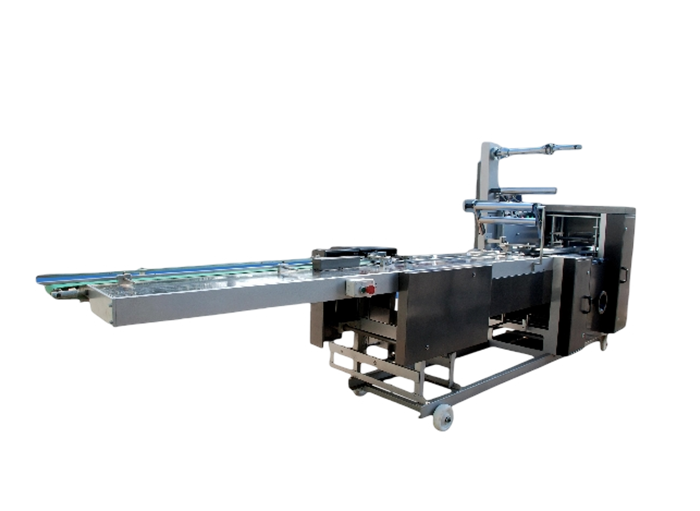

UGP7150FS for Toilet/Laundry/Multipurpose
| MACHINE MODEL | UGP7150FS |
|---|---|
| Machine Designed Speed | Up to 50ppm |
| Connected Load | 5.5 kw, 415V, 3 Ø + N, 50 Hz |
| 6 LPM | 6 LPM |
| Machine Foot Print Size (L x W x H) in mm | 4308 x 3699 x 2093 |
| Machine Net Weight | 1850kg |
| Machine Construction | CI Casting, MS Painted contact parts SS304 or SS316 as Optional Feature |
| Wrapper Pulling | Servo Controlled PLC |
| Core Inner DIA of Reel | 75 ± 1 MM |
| Wrapper Maximum Outer DIA of Reel | 400 ±10 MM |
| Cross Seal | Pneumatic |
| Standard Product Handing Maximum Size (mm) | 120 x 65 x 42 |
| Standard Product Handing Minimum Size (mm) | 65 x 35 x 10 |
| Packaging Material | Poly + Paper + Hotmelt |
| Actual Production Efficiency | 85% |

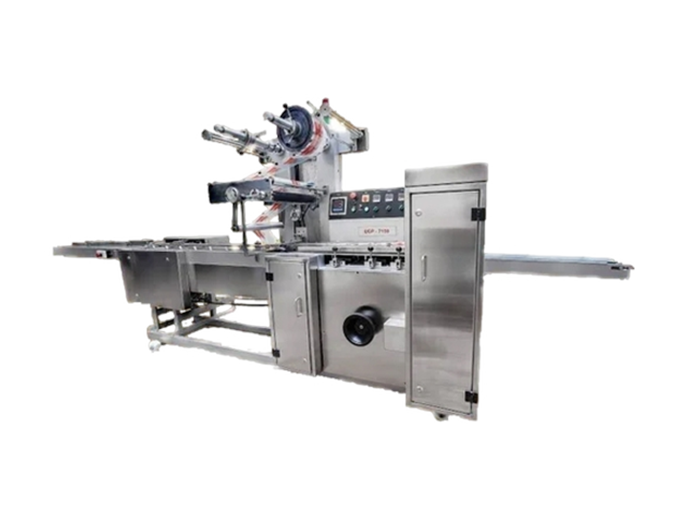

UGP7120FS for Toilet/Laundry/Multipurpose
| MACHINE MODEL | UGP7120FS |
|---|---|
| Machine Designed Speed | Up to 120 PPM |
| Connected Load | 7.5 kw, 415V, 3 Ø + N, 50 Hz |
| 6 LPM | 6 LPM |
| Machine Foot Print Size (L x W x H) in mm | 4308 x 3699 x 2093 |
| Machine Net Weight | 1850kg |
| Machine Construction | CI Casting, MS Painted contact parts SS304 or SS316 as Optional Feature |
| Wrapper Pulling | Servo Controlled PLC |
| Core Inner DIA of Reel | 75 ± 1 MM |
| Wrapper Maximum Outer DIA of Reel | 400 ±10 MM |
| Cross Seal | Pneumatic |
| Standard Product Handing Maximum Size (mm) | 120 x 65 x 42 |
| Standard Product Handing Minimum Size (mm) | 65 x 35 x 10 |
| Packaging Material | LAMINATE USED BOPP/LAMINATE WITH INSIDE HEAT SEALABLE |
| Actual Production Efficiency | 85% |
Standard Feature
- Machine designed to pack Toilet Bar Soap / Multi-Purpose Bar Soap / Laundry Bar Soap / Hotel Bar Soap, Detergent Bar Soaps & long Laundry bar soap.
- Speed up to 250 PPM depending upon the product dimensions and laminate quality and soap feeding options.
- Double spool arrangement for laminate rolls to save change over time to increase the uptime of the machine.
- Cross sealer control through servo for better quality, safety of product and operator.
- Heavy duty, distortion free CI Casting for high speed operations.
- Long seal is formed by three pairs of mechanical circular sealer and circular sealer axis can be tilted.
- Castors for mobility of machine
OPTIONAL FEATURES
- Packing date printer.
- Customized infeed conveyor to suits plant layouts.
- Change part kit for different soap sizes.
- Auto gusting unit.
- Preset String Cutting
MACHINE SPECIFICATIONS
- Supply: 3 Phase 220V, 50Hz
- Motor: 2 HP, 3 Phase
- Heater: 3 KW
- Machine consumption: 6 KW
Standard features:
- Machine designed to pack Toilet Bar Soap / Multi-Purpose Bar Soap / Laundry Bar Soap / Hotel Bar Soap, Detergent Bar Soaps & long Laundry bar soap.
- Speed up to 60 PPM depending upon the product dimensions and laminate quality and soap feeding options.
- Double spool arrangement for laminate rolls to save change over time to increase the uptime of the machine.
- 2 rows of soaps are placed edge ways on flat belt conveyor, either by link up conveyor (not a part of the machine) or manually.
- Autofeeder transfers these soaps to the infeed lug conveyor of the machine.
- Infeed conveyor then transfers multi soap into wrapping film that has been formed into a tube by means of forming folder.
- Bottom seal is made by three sets of rollers.
- Cross sealing and cutting knife separate the packed soaps
- Cross sealer control through servo for better quality, safety of product and operator.
- Heavy duty, distortion free CI Casting for high speed operations.
- Long seal is formed by three pairs of mechanical circular sealer and circular sealer axis can be tilted.
Optional features:
- Packing date printer
- Customized infeed conveyor to suits plant layouts.
- Change part kit for different soap sizes.
- Auto gusting unit.
- Preset String Cutting
MACHINE SPECIFICATIONS
- Supply: 3 Phase 220V, 50Hz
- Motor: 2 HP, 3 Phase
- Heater: 3KW
- Machine consumption: 6 KW

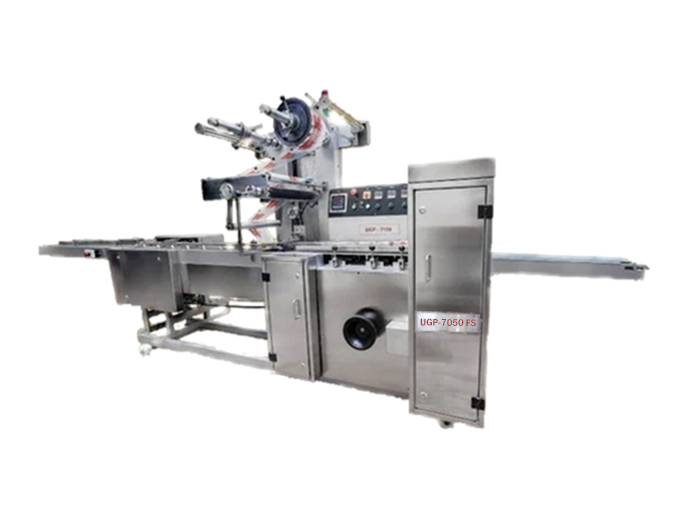

UGP7050FS Horizontal Flow Wrap Machine for Soaps in 2x2 or 2x3 Collation
| MACHINE MODEL | UGP7050FS |
|---|---|
| Machine Designed Speed | Up to 120 PPM |
| 6 LPM | 6 LPM |
| Machine Foot Print Size (L x W x H) in mm | 4308 x 3699 x 2093 |
| Machine Net Weight | 1850kg |
| Machine Construction | CI Casting, MS Painted contact parts SS304 or SS316 as Optional Feature |
| Wrapper Pulling | Servo Controlled PLC |
| Core Inner DIA of Reel | 75 ± 1 MM |
| Wrapper Maximum Outer DIA of Reel | 400 ±10 MM |
| Cross Seal | Pneumatic |
| Standard Product Handing Maximum Size (mm) | 120 x 65 x 42 |
| Standard Product Handing Minimum Size (mm) | 65 x 35 x 10 |
| Packaging Material | LAMINATE USED BOPP/LAMINATE WITH INSIDE HEAT SEALABLE |
| Actual Production Efficiency | 85% |

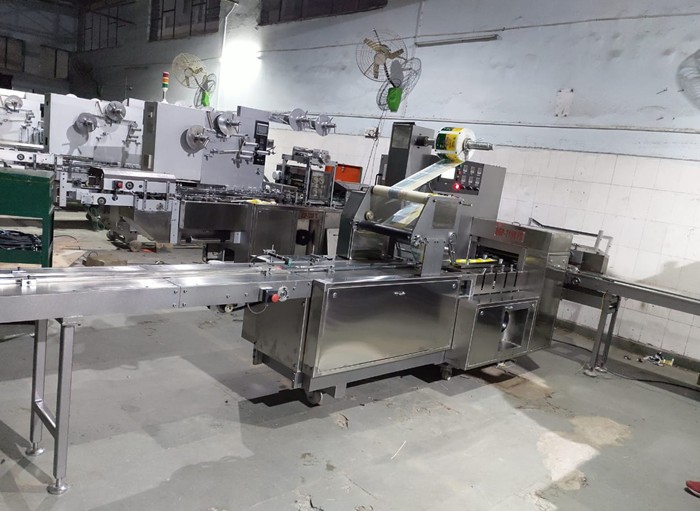

UGP7100FS for Toilet/Laundry/Multipurpose
| MACHINE MODEL | UGP7100FS |
|---|---|
| Machine Designed Speed | Up to 100 PPM |
| Connected Load | 5.5 kw, 415V, 3 Ø + N, 50 Hz |
| 6 LPM | 6 LPM |
| Machine Foot Print Size (L x W x H) in mm | 4308 x 3699 x 2093 |
| Machine Net Weight | 1850kg |
| Machine Construction | CI Casting, MS Painted contact parts SS304 or SS316 as Optional Feature |
| Wrapper Pulling | Servo Controlled PLC |
| Core Inner DIA of Reel | 75 ± 1 MM |
| Wrapper Maximum Outer DIA of Reel | 400 ±10 MM |
| Cross Seal | Pneumatic |
| Standard Product Handing Maximum Size (mm) | 120 x 65 x 42 |
| Standard Product Handing Minimum Size (mm) | 65 x 35 x 10 |
| Packaging Material | LAMINATE USED BOPP/LAMINATE WITH INSIDE HEAT SEALABLE |
| Actual Production Efficiency | 85% |
Standard features:
- Machine designed to pack Toilet Bar Soap / Multi-Purpose Bar Soap / Laundry Bar Soap / Hotel Bar Soap, Detergent Bar Soaps & long Laundry bar soap with manual feeding of product by hand
- Speed up to 100 PPM depending upon the product dimensions and laminate quality and soap feeding options.
- Double spool arrangement for laminate rolls to save change over time to increase the uptime of the machine.
- Bottom seal is made by three sets of rollers.
- Cross sealing and cutting knife separate the packed soaps
- Heavy duty, distortion free CI Casting for high speed operations.
- Long seal is formed by three pairs of mechanical circular sealer and circular sealer axis can be tilted.
Optional features:
- Packing date printer
- Customized infeed conveyor to suits plant layouts.
- Change part kit for different soap sizes.
- Auto gusting unit.
- Preset String Cutting
MACHINE SPECIFICATIONS
- Supply: 3 Phase 220V, 50Hz
- Motor: 2 HP, 3 Phase
- Heater: 3KW
- Machine consumption: 6 KW
